Mastering C4 Model Architecture - A Comprehensive Guide

By Visual C4 architecture Team•

Welcome to the comprehensive guide on mastering the C4 Model Architecture! This page will delve into each of the four levels of the model: System Context, Container, Component, and Code.

Understanding the C4 Model

The C4 model offers a hierarchical approach to understanding software systems, breaking them down into Context, Containers, Components, and Code. This layered perspective allows for the creation of "maps of your code" at different levels of detail.

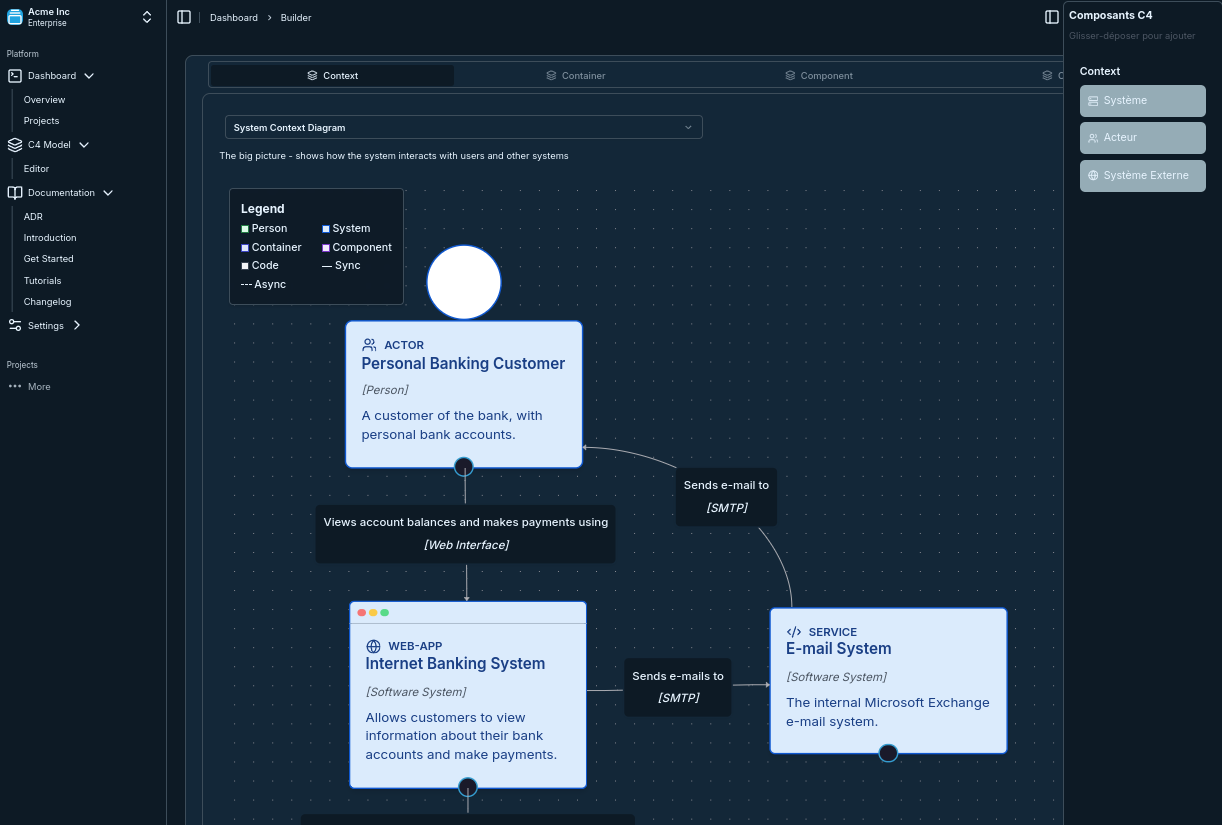

Context Level Diagram

Key Benefits

  • Improved Communication: Facilitates better understanding among team members and stakeholders.
  • Efficient Onboarding: Helps new team members quickly grasp the system architecture.
  • Enhanced Reviews: Provides a clear structure for architecture reviews and evaluations.

Explore the Levels

Detailed Breakdown

System Context Level

The System Context level provides a high-level overview of the system and its interactions with external entities. This level is crucial for understanding the system's place within the broader ecosystem.

System Context Level

Container Level

The Container level zooms into the system to illustrate the applications and data stores within it. This level is essential for understanding the high-level structure of the system.

Component Level

The Component level further focuses on the internal components of a container, mapping them to code abstractions. This level is useful for detailed design and implementation discussions.

Code Level

The Code level provides the most granular view and is often represented by UML class diagrams. This level is optional but can be useful for detailed implementation documentation.

Conclusion

Mastering the C4 Model Architecture is essential for effective software architecture documentation and team communication. By understanding and utilizing the four levels of the C4 model, you can create clear and comprehensive architecture diagrams that benefit your entire team.

The C4 model's structured approach also provides a solid foundation for project management. Learn how to apply these concepts to your project planning and execution in our guide: Project Management with the C4 Model.
